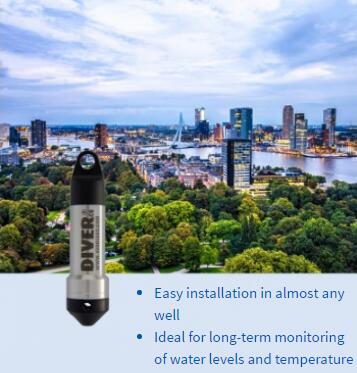

小型地下水自動監測儀 Mini-Diver
- 產品品牌 vanEssen
- 產品型號 Mini-Diver
- 產品描述 自動記錄地下水水位、水溫，不銹鋼（316L）外殼，可以存儲24000組測量值內存，每組測量值包括日期、時間、水位、水溫。如果每10分鐘測一次，可以連續監測6個月。...
自動記錄地下水水位、水溫，不銹鋼（316L）外殼，可以存儲24000組測量值內存，每組測量值包括日期、時間、水位、水溫。如果每10分鐘測一次，可以連續監測6個月。內部電池使用壽命可達10年。小巧的設計，使其幾乎可以安裝在任何監測孔內。
產品編號 測量范圍
DI501 10米
DI502 20米
DI505 50米
DI510 100米
技術規格：
尺寸 直徑22毫米，長度90毫米
重量 70克
外殼材質 RVS 316L型不銹鋼
壓力傳感器材質 陶瓷
采樣頻率 0.5秒到99小時
內存 24000組數據
電池壽命 8到10年
溫度范圍 -20到80攝氏度
精度 ±0.1攝氏度
分辨率 0.01攝氏度
溫度補償范圍 -10到40攝氏度
深度范圍 10，20，50和100米四種可選
精度 全量程的±0.05%
分辨率 0.2，0.4，1和2厘米（對應四種測量范圍）
Mini-Diver
Cost-Effective
The Mini-Diver is based on an ingenious and proven concept and is acknowledged as the most reliable instrument for the autonomous measuring and recording of groundwater level and temperature.
Its internal memory of 24,000 measurements per parameter provides sufficient capacity to perform nearly one measurement every ten minutes for six months.
For each measurement, the Diver registers the date and time, groundwater level, and temperature.
Features
Ø Compact size: Ø 22 mm - length 90 mm
Ø 24,000 records of time stamp, pressure and temperature
Ø 30-Point Pressure Factory Calibration
Benefits
Ø Easy installation in almost every well
Ø Cost effective frequent, long-term measuring
Ø Reliable and accurate data
Ø Low maintenance, No user calibration
Applications
Ø Long term water level monitoring
Ø Groundwater monitoring projects
Ø Groundwater monitoring network automation
Ø Watershed, drainage basin and recharge areas
Ø Stream gauging, lake levels and reservoirs
Ø Wetlands and stormwater run-off monitoring
Technical Specification
General
Length Diameter Weight Memory Wetted parts housing o-rings pressure sensor cap / nose cone Battery life Sample interval Sample methods | 90 mm 22 mm 55 grams 24,000 measurements
stainless steel 316L Viton ® piezoresistive ceramic Nylon PA6 30% glass fiber 10 years (dependent on usage) ½ second to 99 hours fixed |
Pressure
Model | DI501 | DI502 | DI505 | DI510 | Unit |
Range | 10 | 20 | 50 | 100 | meter |
Accuracy | ±0.5 | ±1.0 | ±2.5 | ±5.0 | cmH2O |
Resolution | 0.2 | 0.4 | 1.0 | 2.0 | cmH2O |
Temperature
Value | Unit | |
Range | -20 .. +80 | °C |
Accuracy | ±0.1 | °C |
Resolution | 0.01 | °C |
